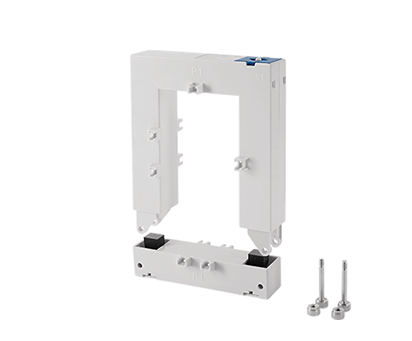

ALH-0.66 HK
Novel design, advanced compensation method, excellent process technology, safe and reliable performance, small and aesthetic appearance, as well as complete varieties, ideal for control, protection, and measurement.
-
Rated Insulation Voltage
AC660V
-
Power Frequency Withstand Voltage
3kV (1min, 50Hz; between the enclosure and secondary terminal)
-
Insulation Class
E
-
Primary Current
5A-5000A
-
Secondary Current
1mA-5A
Product Features
Technical Parameters
Main Parameters
|
Rated Operating Voltage (Un) |
AC660V |
|
Rated Frequency |
50～60Hz |
|
Power Frequency Withstand Voltage |
3,000V (1min, 50Hz; between the enclosure and secondary terminal) |
|
Insulation Class |
E |
|
Altitude |
≤1,000m (for regular applications: for special applications at altitudes >1,000m, the appropriate transformers must be selected according to the constraints specified in GB20840) |
|
Compliance Standards |
GB20840 |
|
Primary Current |
200A-6300A |
|
Secondary Current |
5A/1A |
|
Ambient Temperature for Use |
-25℃~+40℃ |
|
Maximum Temperature Resistance |
120℃ |
|
Ambient Temperature for Storage |
-40℃~+70℃ |
|
Accuracy Grade |
(Protective current transformer) 5P5, 5P10, 5P15, 5P20, 10P5, 10P10, 10P15, 10P20 |
Industry Application
-
New EnergyPromoting the utilization of renewable energy, assisting in the transformation to clean energy
-
Data centerAPT products ensure safe and stable equipment operation in data centers. The products include cam switches,current transformer,MCB,indicators, pushbuttons, relays, etc.
-
LogisticsAssisting in the intelligence of logistics management systems, improving transportation efficiency and traceability
